Episode #62 - Scratch Stock Part I


The Scratch Stock – Part I

I had a great day in the shop. I started by dimensioning stock for my next project which is now stickered and adjusting to the shop environment. I also started experimenting with hide glue . . . more on that in the future. I also made a scratch stock. After following Crazy Leg Federal Table forum project on The Rough Cut Show, I started working on developing skills anticipating building a similar table. I thought the scratch stock would be a fun little project to end a great day in the shop. Well, I was right and wrong on that account!

Version I - getting ready to
test the retaining screws

Version I - system failure!

My first scratch stock was inspired from a Garret Hack design built by Kari Hultman on her blog The Village Carpenter. Unfortunately, there was a sickening sound of splitting wood and mine broke in two pieces as I tightened the retainer screws. In retrospect the two screws likely produced too much force and I should have allowed more end grain length. Not about to be defeated and leave the shop disappointed, I powered up and built another with a slightly modified design.

Set-up to cut the blade blank from a card scraper

Using a hacksaw to cut the blade blank from a card scraper

Version II sports steel reinforcement that also serves to keep the blade secure from racking in the slot. These are quick and easy to build. Now I just have to get some time to shape the cutter!


Version II ready to be drilled

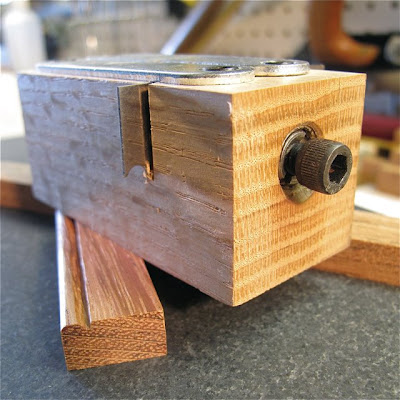

Version II complete

UPDATE

Click here to see completion of this scratch stock with a quirk bead blade



Some interesting scratch stock resources:

Beading with a Scratch Stock - FWW

Scratch Stock – Kari Hultman • Village Carpenter

Scratch Stock Moldings – Shavings and Sawdust

The Venerable Bead – Lee Valley Project Article
